1994-2003 7.3 Powerstroke

7.3 Powerstroke

Using Sniper Delta Force and Power Hungry Minotaur software, Gearhead Automotive Performance has developed killer programs for the 7.3 Powerstroke.Completely stock truck or aftermarket turbo and injectors? No Problem!

We can handle these and anything in-between as well as radical combinations with the largest injectors.

Do you want programming that gets excellent mileage and acts like a stock truck until you pin the pedal? Do you want programming that doesn’t belch smoke every time you try and merge into traffic? We can do that!

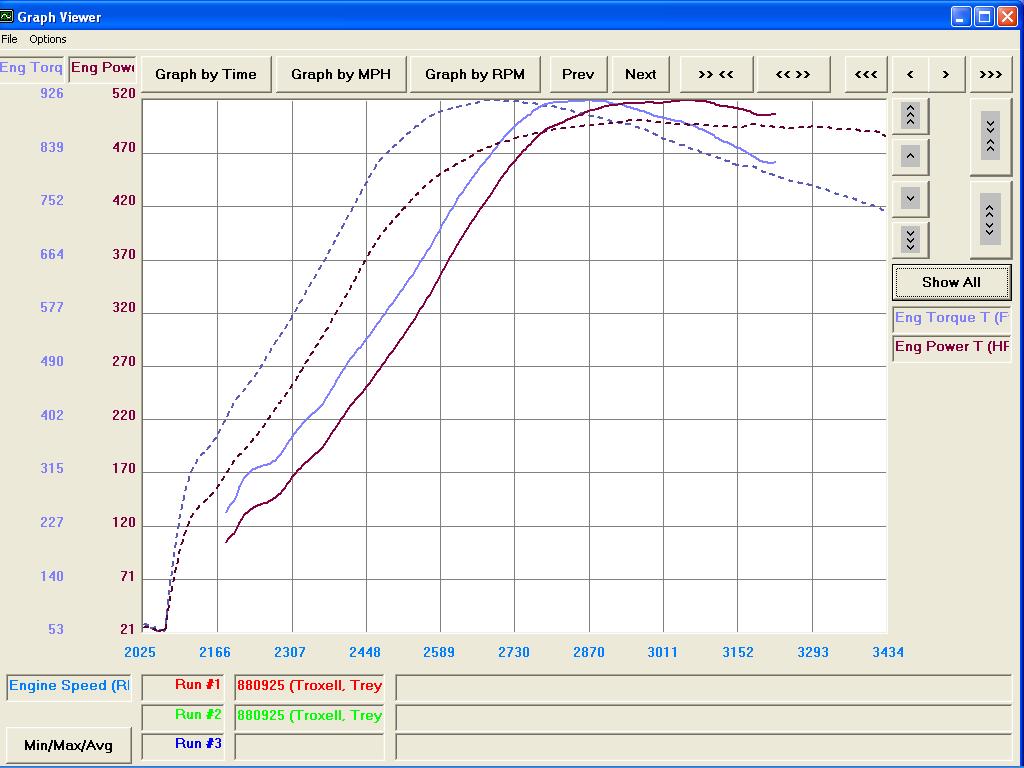

7.3 Powerstroke Dyno results

(Click on dyno sheet for higher resolution)

7.3 Liter Tune Descriptions

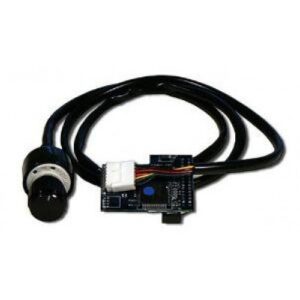

Default files available for 99.5-2003 7.3’s with stock injectors for 6 position chips (custom files by request):

Heavy Tow

Towing up to the trucks capacity but with better economy than stock

High Idle

Aids warm-up and running accessories with heavy electrical demand or better air conditioner performance in the summer time on long periods of idling


Gains about 40 HP over stock can usually tow up to 10,000 lbs but user should watch Exhaust Gas Temperature (EGT) on long hills if towing 7,000 lbs and above.

Street Muscle

Gains 80-100 HP over stock and runs about 1300 degrees max with an exhaust and intake installed

Street Fury

Good for extra passing power (must watch EGT) and sprints from stoplight to stoplight without belching tons of smoke

All Out

This file definitely scoots with a stab of the throttle, with power gains over tune 5. This does depend on the condition of your High Pressure Oil Pump (HPOP) and its availability to produce enough volume to the injectors.

Default files available for 94-03 7.3’s with single shot injectors (custom files by request):

Heavy Tow

High Idle




All Out

A very happy customer with his Gearhead Automotive Performance package made 520RWHP! This package included 238cc hybrid injectors, Garrett 38R Turbo, and Custom Gearhead Chip. Inquire about a package deal on these components.

**PLEASE NOTE: revisions to your tunes are available for 30 days after purchase – after which, you will need to purchase a tune revision package. Thank you!**

Showing all 3 results
